Caratteristiche Tecniche
| CPU | NXP i.MX8M Quad Plus, 4x Cortex-A53 1.8 GHz |
|---|---|
| Chipset | – |
| RAM | Onboard 4GB LPDDR4-3200MHz SDRAM |
| LAN | 1 x GbE LAN |
| I/O |

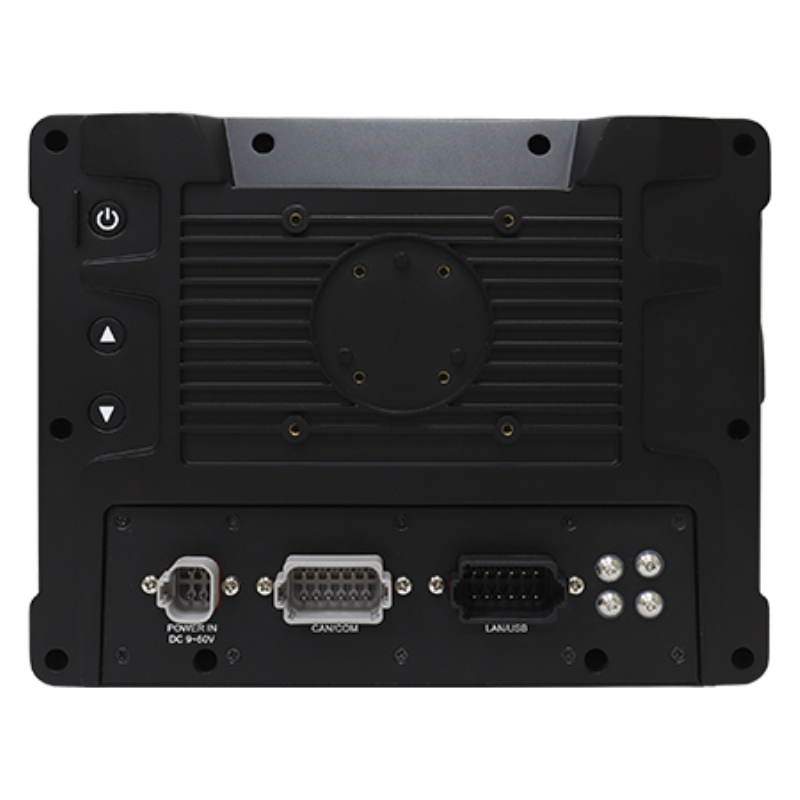

ISOBUS Connectors: 1 x ISOBUS 12-pin DT15-12PA connector for 1 x CAN BUS + 1 x RS 232/422/485(COM1), w/1.5KV isolation protection, 1 x USB2.0, w/1.5KV isolation protection, 1 x ISOBUS 4-pin DT15-4P connector for 9~60V DC input 4 x SMA connectors’ holes for external antennas. Under waterproof cover : 1 x USB2.0 Type-A connector, 1 x Nano SIM, 1 x Micro SDXC slot |
| Storage | Onboard 32GB eMMC NAND Flash |
| Expansion |
1 x Full-size mini-PCIe socket (USB2.0) for HSUPA/LTE Module (for option) 1 x Full-size mini-PCIe socket (PCIe+USB2.0) for WIFI/BT Module (for option) |
| Display Size and Form Factor | 10.1″, – |
| Resolution | 1280 x 800 px |
| Brightness | 350 cd/m2, 1000 cd/m2 for option |
| Touch | PCAP |
| Mechanicals | Complete IP66, Support VESA mount 75×75, RAM Mount |
| Operating Temperature | 0~50°C, WT1: -20°C~60°C for option, WT2 : -20~70°C for option |
| Power | DC 9~60V |
| Notes | – |
