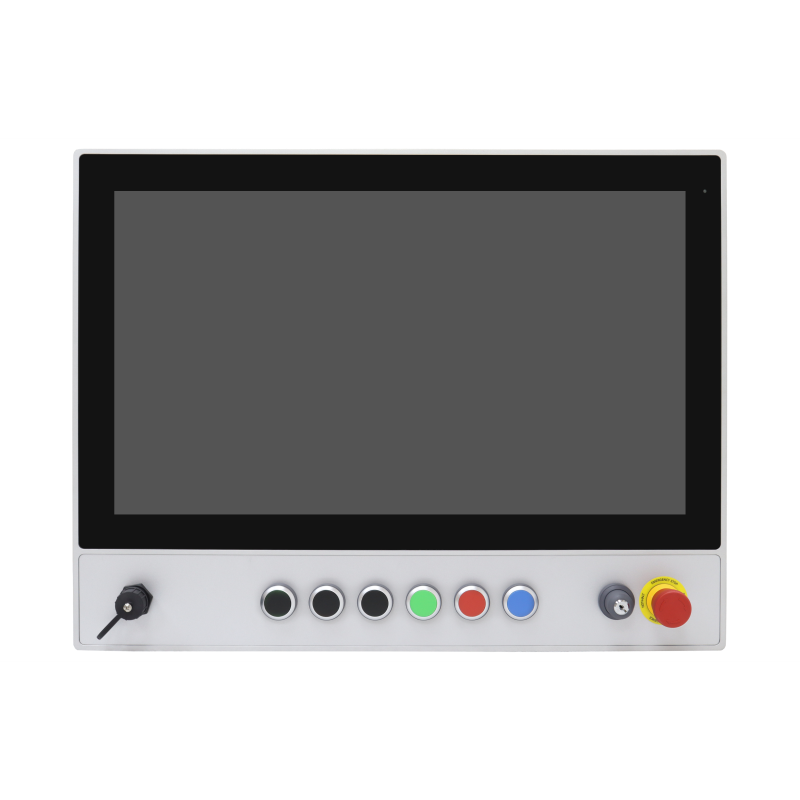

Caratteristiche Tecniche
| CPU | Intel 12th Gen. (Alder Lake-U) Processors |
|---|---|
| Chipset | Intel SoC |
| RAM | 2 x DDR4-3200MHz SO-DIMM (Dual Channel, Non-ECC) sockets, up to 64GB |
| LAN | 1 x Intel I219LM, GbE LAN, RJ45; 1 x Intel I210AT, GbE LAN, RJ45 |
| I/O | 2 x USB 3.2 Gen.1 x1 via USB type-A port; 2 x USB 2.0 via USB type-A port; 1 x USB 2.0 Type-A (water proof by Front); 1 x USB 2.0 Type-A (water proof by Rear); 1 x RS-232(default)/422/485 select via BIOS, pin9 RI(default)/5V/12V select via jumper, DB9(COM1); 1 x HDMI, 4096×2304@60Hz; 1 x Emergency Button; 1 x Key Switch (for option); Push Button Default: 1 x Blue(reset) / 1 x Red(stop) / 1 x Green(start)/ Optional: 3 x Black(self-defined) |
| Storage | 1 x M.2 M-Key 2280 for SSD (PCIe 3.0 x4); 1 x 2.5″ HDD Bay | Display Size and Form Factor | 21,5″ TFT-LCD |
| Resolution | 1920 x 1080 px |
| Brightness | 250 cd/m2 |
| Touch | PCAP |
| Mechanicals | Structure Aluminum; Mounting Swing Arm Mount (Default)/ Stand *support Rittal CP-40; Full IP65 |
| Operating Temperature | 0°C ÷ 50°C |
| Power | DC 9 ÷ 36V |
| Notes | CE/FCC Class A / UKCA |
