Caratteristiche generali

– 8th Gen Intel® Core™ i7/i5/i3 Processor (Coffee Lake-S) running with Intel® H310 Chipset
– DDR4 2666MHz memory, up to 64GB
– Fanless -25°C to 60°C Operating Temperature, optional supports operation with fan
– 2 DisplayPort and 1 DVI display interfaces support dual independent displays, up to 4K resolution
– 4 USB 3.1, 4 COM RS-232/422/485
– 4 Independent Intel® GigE LAN, iAMT 12.0 supported
– Supports WiFi/4G/3G/LTE/GPRS/UMTS
– 2 Mini PCIe sockets for PCIe/USB/SIM Card/mSATA expansions
– 12V DC Power Input

Caratteristiche Tecniche
SYSTEM
Processor 6 cores Intel® Core™ i7/i5/i3 Processor (Coffee Lake-S)
Chipset Intel® H310
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2666MHz SO-DIMM, up to 64GB (ECC/Non-ECC)
OS Windows 10, Linux
I/O INTERFACE
USB 4 COM RS-232/422/485 (ESD 8KV)
4 USB 3.1 (External) – 2 USB 2.0 (Internal)
LED Power, HDD
SIM Card 1 SIM Card Socket (Internal)
EXPANSION
Mini PCIe 2 Mini PCIe sockets :
– 1 Full-size for PCIe/USB/SIM Card
– 1 Full-size for PCIe/USB/mSATA
GRAPHICS
Graphics Processor Intel® UHD Graphics 630
Interface – 2 DisplayPort : Up to 4096 x 2304 @60Hz
– DVI-D : Up to 1920 x 1200 @60Hz
STORAGE
SATA 2 SATA III (6Gbps) support S/W RAID 0, 1
mSATA 1 SATA III (Mini PCIe Type, 6Gbps)
AUDIO
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
ETHERNET
LAN 1 Intel® I219LM GigE LAN supports iAMT 12.0
LAN 2 Intel® I210 GigE LAN
LAN 3 Intel® I210 GigE LAN
LAN 4 Intel® I210 GigE LAN
POWER
Power Input 12V DC-in (± 5%)

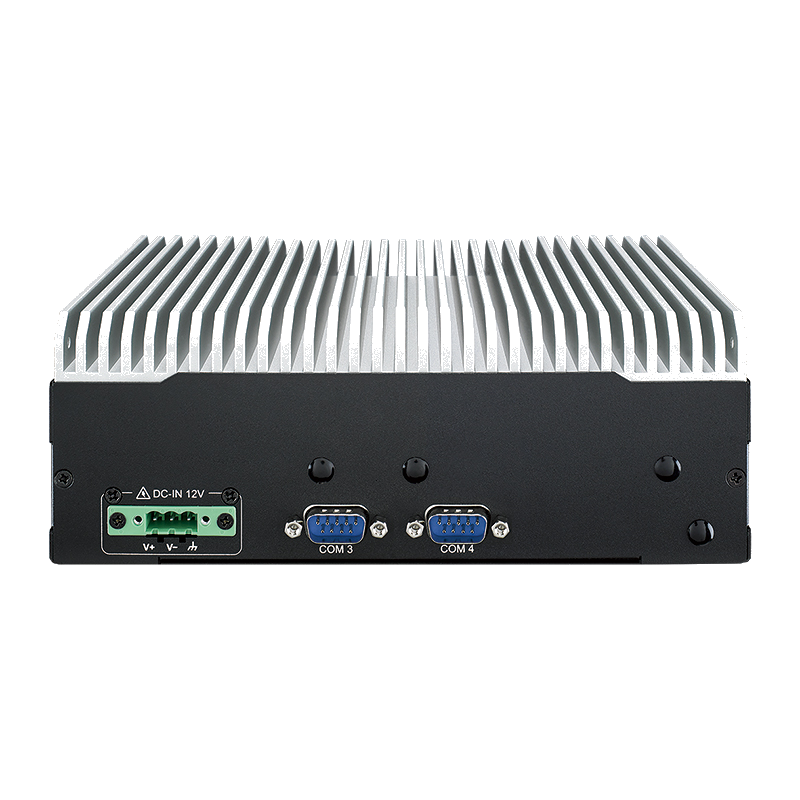

Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Remote Switch 2-pin Terminal Block
OTHERS
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Mgmt. Wake on LAN, PXE supported
HW Monitor Monitoring temperature and voltages. Auto throttling control when CPU overheats.
MECHANICAL
Dimensions 209.0mm x 150.5mm x 75.0mm (8.23″ x 5.93″ x 2.95″)
Weight 1.3 kg (2.87 lb)
Mounting Wallmount by mounting bracket
ENVIROMENT
Operating Temp 35W TDP CPU : -25°C to 60°C (-13°F to 140°F)
65W TDP CPU w/Fan Bracket : -25°C to 60°C (-13°F to 140°F)
Storage Temp -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @ 60°C
Shock – IEC 60068-2-27
– SSD : 50G@Wallmount, Half-sine, 11ms
Vibration – IEC 60068-2-64
– SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2
