Caratteristiche generali
  • 8th Generation Intel® Core™ i7/i5/i3 U-series processor (Whiskey Lake) supports up to 40% greater productivity than former generation solution

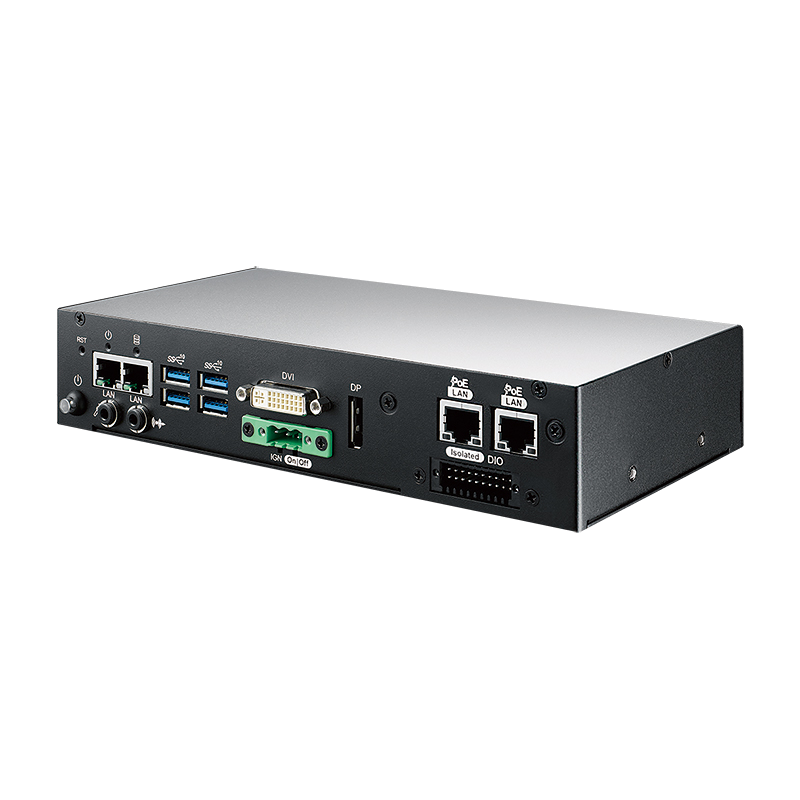

  • Compact design, matches 1U one rack unit of height
  • Fanless -40°C to 70°C Operating Temperature
  • DDR4 2400MHz memory, up to 32GB

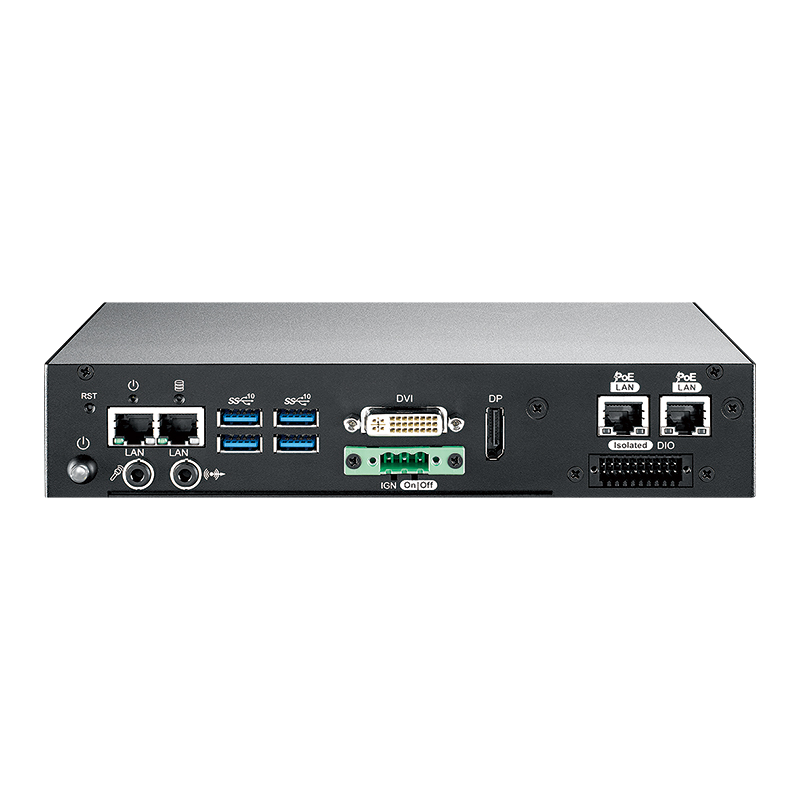

  • Supports DisplayPort and DVI-D dual display
  • 4-port USB 3.1 Gen 2 supports up to 10Gbps data transfer
  • 4 Independent GigE LAN with 2 PoE (Power over Ethernet), iAMT 12.0 supported
  •  SIM Socket for WiFi/4G/3G/LTE/GPRS/UMTS
  • 4 COM RS-232/422/485, 16 Isolated DIO
  • Expansion : SATA III, mSATA and Mini PCIe
  • Supports TPM 2.0
  • 9V to 48V wide range DC Power Input
  • Configurable Ignition Power Control
Caratteristiche Tecniche
SYSTEM
Processor Quad Core Intel® Core™ i7/i5/i3 U-series Processor (Whiskey Lake)
Chipset Intel® SoC (Cannon Lake)
BIOS AMI
SIO IT8786E
Memory 1 DDR4 2400MHz SO-DIMM, up to 32GB
OS Windows 10, Linux
I/O INTERFACE
Graphics Processor Intel® UHD Graphics 620
Interface Dual display :
– DVI-D : Up to 1920 x 1200 @60Hz
– 1 DisplayPort : Up to 4096 x 2304 @60Hz
ETHERNET
LAN 1 Intel® I219LM GigE LAN supports iAMT 12.0
LAN 2 Intel® I210 GigE LAN
PoE
LAN 3 Intel® I210 GigE PoE LAN
LAN 4 Intel® I210 GigE PoE LAN
AUDIO
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
STORAGE
SATA 1 SATA III (6Gbps)
mSATA 1 SATA II (Mini PCIe Type, 3Gbps)
I/O INTERFACE

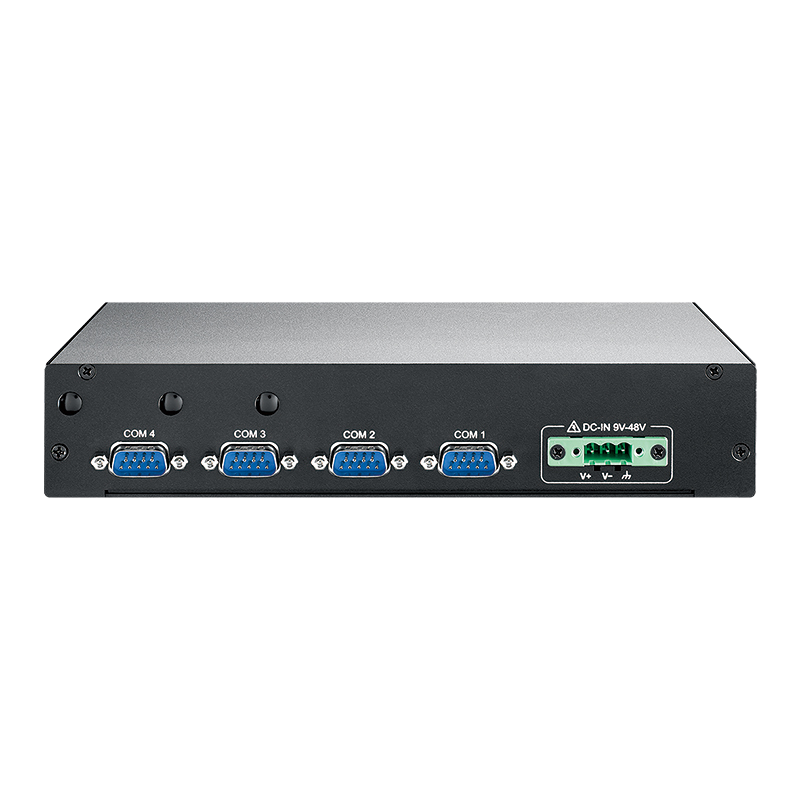

Serial 4 COM RS-232/422/485 (ESD 8KV)
USB 4 USB 3.1 Gen2
Isolated DIO 16 Isolated DIO : 8 DI, 8 DO
LED Power, HDD, PoE
SIM Card 1 SIM Card Socket (Internal)
EXPANSION
Mini PCIe 1 Mini PCIe for PCIe/USB/SIM Card/Optional mSATA
POWER
Power Input 9V to 48V DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block
OTHERS
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Mgmt. Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
MECHANICAL
Dimensions 246.1mm x 53.8mm x 44.0mm (9.69″ x 2.12″ x 1.73″)
Weight 1 kg (2.18 lb)
ENVIRONMENT
Operating Temp. -40°C to 70°C (-40°F to 158°F)
Storage Temp. -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @ 85°C
Shock – IEC 60068-2-27
– SSD : 50G @ wallmount, Half-sine, 11ms
Vibration – IEC 60068-2-64
– SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2
