Caratteristiche generali

-Quad Core Intel Atom® x7-E3950 SoC (Apollo Lake-I) supports lower power consumption
-Fanless, -40°C to 85°C operating temperature
-DVI-I and DisplayPort dual display supports up to 4K resolution
-Supports DDR3L 1866MHz memory, up to 8GB
-2 Independent GigE LAN support IEEE 1588 (PTP)
-4 USB 3.0, 4 COM RS-232/422/485
-External SIM socket supports WiFi/4G/3G/LTE/GPRS/UMTS
-Single 12V DC Power Input
-TPM 2.0 supported

Caratteristiche Tecniche
SYSTEM
Processor Intel Atom® x7-E3950 processor (Apollo Lake-I)
BIOS AMI
SIO IT8786E
Memory 1 DDR3L 1866MHz SO-DIMM, up to 8GB
OS Windows 10
Linux
I/O INTERFACE
Serial 4 COM RS-232/422/485
USB 4 USB 3.0 (external)
LED Power
SIM card 1 SIM socket (external)
EXPANSION
2 Mini PCIe sockets 1 Mini PCIe for PCIe/USB/SIM card
1 Mini PCIe for PCIe/USB/optional mSATA
GRAPHICS
Processor Intel® HD graphics 505
Interface DVI-I: Up to 3840 x 2160 @60Hz
DP: Up to 4096 x 2160 @60Hz
STORAGE
SATA 1 SATA III (6Gbps)
mSATA 1 SATA III (Mini PCIe type, 6Gbps)
Storage Device 1 2.5″ SSD/HDD bracket (internal)
AUDIO
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Line-out
ETHERNET
LAN 1 Intel® I210 GigE LAN supports IEEE 1588
LAN 2 Intel® I210 GigE LAN supports IEEE 1588
POWER
Power Input 12V DC power input

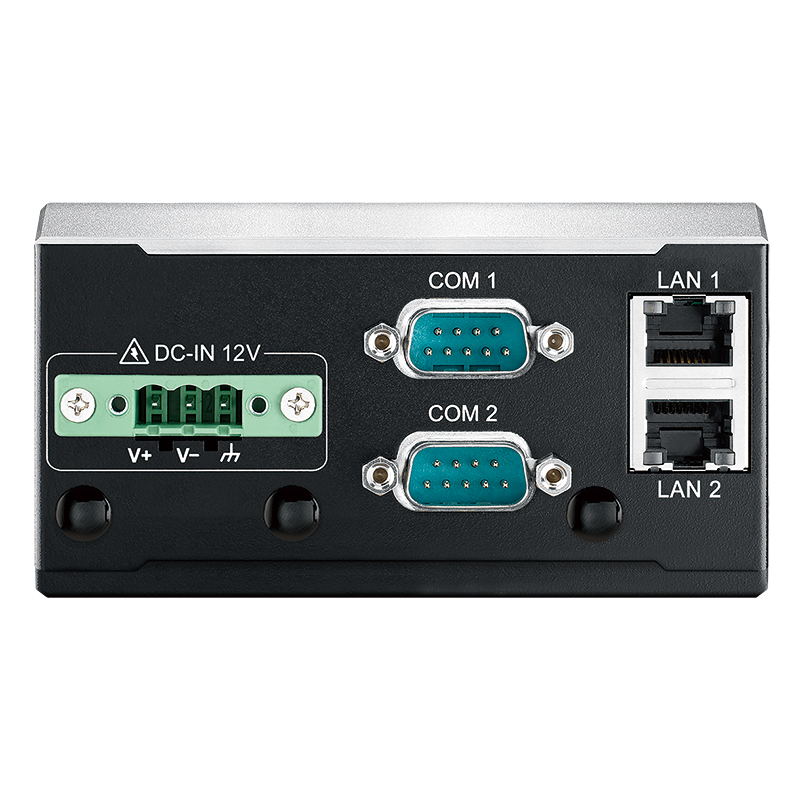

Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
OTHERS
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats
MECHANICAL
Dimension 106mm x 150mm x 59mm (4.17″ x 5.91″ x 2.30″)
Weight 0.9 kg (1.98 Ib)
Mounting Wallmount by mounting bracket
DIN Rail Mount (optional)
2U Rackmount (optional)
ENVIRONMENT
Operating Temperature -40°C to 85°C (-40°F to 185°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @ 85°C
EMC CE, FCC, EN50155, EN50121-3-2
