Caratteristiche generali
- Quad Core Intel Atom® x7-E3950 SoC (Apollo Lake-I) supports lower power consumption
- Fanless, -40°C to 85°C Operating Temperature
- Supports HDMI & VGA Dual Display, up to 4K resolution
- DDR3L 1866MHz memory supports up to 8GB
- 2 GigE LAN support IEEE 1588 (PTP)
- 2 Isolated COM RS-232/422/485
- 16 GPIO, 6 USB, 1 SIM Socket
- 2 Mini PCIe, 1 SATA III
- SIM Socket for WiFi/4G/3G/LTE/GPRS/UMTS
- 12V DC Power Input
- TPM 2.0 supported
Caratteristiche Tecniche
| SYSTEM |
|
| Processor | Intel Atom® x7-E3950 processor (Apollo Lake-I) |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 1 DDR3L 1866MHz SO-DIMM, up to 8GB |
| OS | Windows 10 |
| Linux | |
| I/O INTERFACE |
|
| Serial | 2 Isolated COM RS-232/422/485 |
| USB | 2 USB 3.0 (External) |
| 4 USB 2.0 (2 External, 2 Internal) | |
| LED | Power |
| HDD | |
| Wireless | |
| SIM card | 1 Internal SIM socket |
| EXPANSION |
|
| 2 Mini PCIe sockets | 1 Mini PCIe for PCIe/USB/SIM card |
| 1 Mini PCIe for PCIe/USB/Optional mSATA | |
| GRAPHICS |
|
| Processor | Intel® HD graphics 505 |
| Interface | HDMI : Up to 3840 x 2160 @30Hz |
| VGA : Up to 1920 x 1440 @60Hz | |
| STORAGE |
|
| SATA | 1 SATA III (6Gbps) |
| mSATA | 1 SATA III (Mini PCIe type, 6Gbps) |
| Storage Device | 1 2.5″ SSD/HDD bracket (Internal) |
| AUDIO |
|
| Audio Codec | Realtek ALC892, 5.1 Channel HD Audio |
| Audio Interface | 1 Mic-in |
| 1 Line-out | |
| ETHERNET |
|
| LAN 1 | Intel® I210 GigE LAN supports IEEE 1588 |
| LAN 2 | Intel® I210 GigE LAN supports IEEE 1588 |
| POWER |
|
| Power Input | Single 12V DC power input |

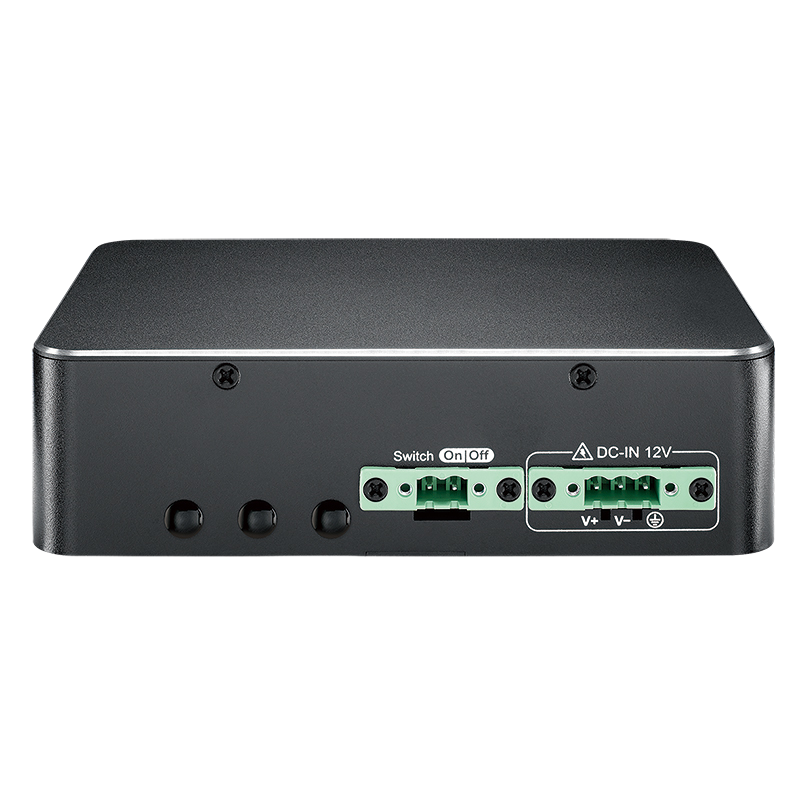

| Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground |
| Remote Switch | 2-pin Terminal Block |
| OTHERS |
|
| TPM Optional | Infineon SLB9665 supports TPM 2.0, LPC interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| MECHANICAL |
|
| Dimension | 155mm x 111mm x 44mm (6.1″ x 4.4″ x 1.7″) |
| Weight | 0.8 kg (1.84 lb) |
| Mounting | Wallmount by mounting bracket |
| DIN Rail mount (Optional) | |
| 2U Rackmount (Optional) | |
| ENVIRONMENT |
|
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @ 85°C |
| EMC | CE, FCC, EN50155, EN50121-3-2 |
