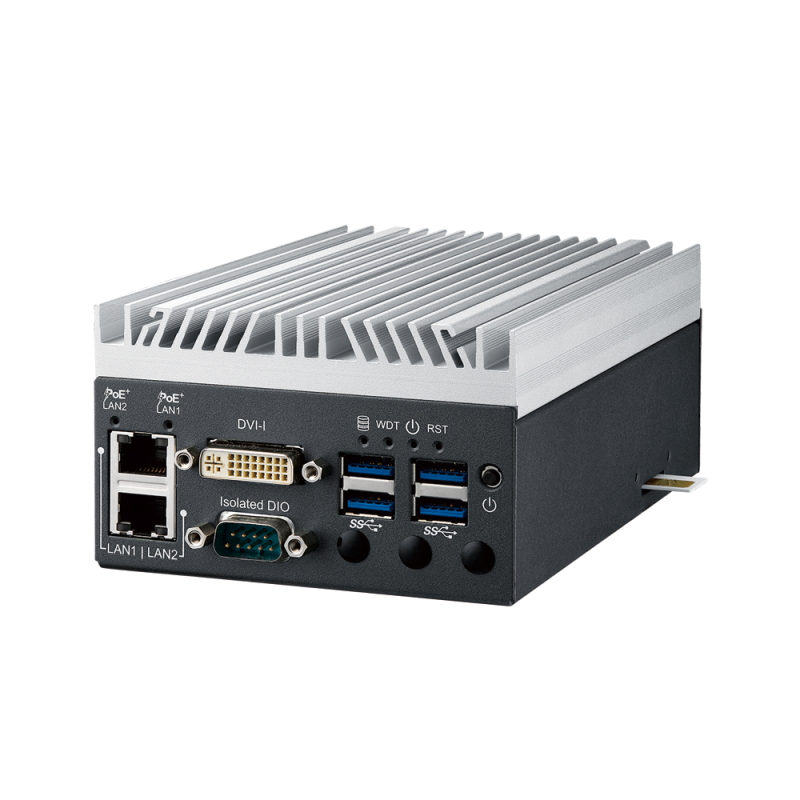

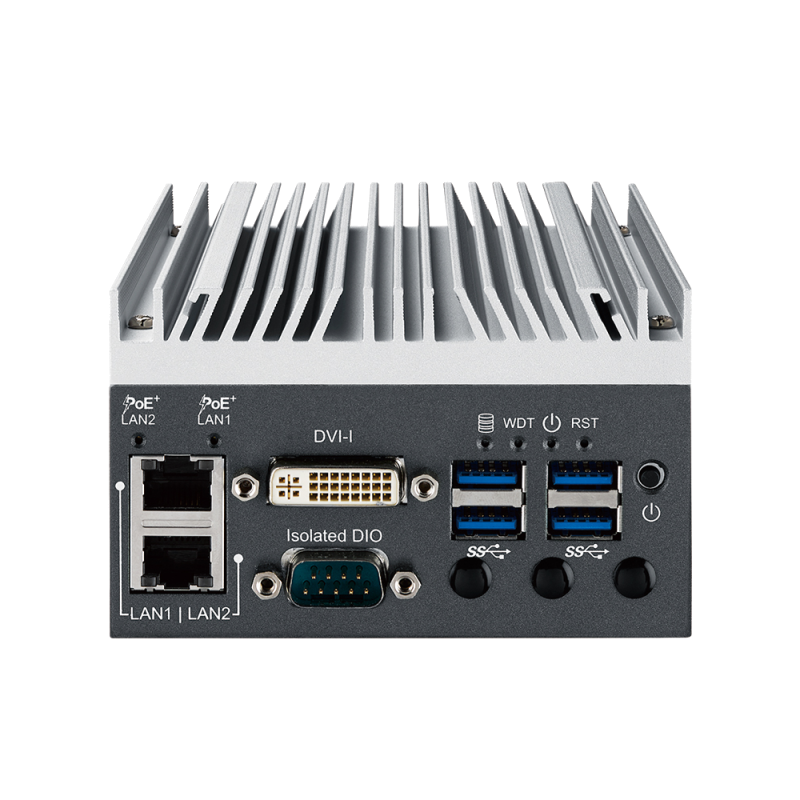

SPC-2845X

Box PC Fanless

Intel® Atom™ Quad-Core™ Valleyview (E3845), Valleyview SoC, 1 DDR3L 1333 SO-DIMM 8GB Max., 4x com, 2xlan, 4 USB 3.0, 2x miniPCIe socket



Caratteristiche generali

– Intel® Atom™ Quad-Core Valleyview (E3845)
– Valleyview SoC
– 1 DDR3L 1333 SO-DIMM 8GB Max.
– 4x com, 2x lan, 4 USB 3.0, 2x miniPCIe socket

Caratteristiche Tecniche
System
Processor Intel® Atom™ Quad Core E3845 1.91GHz Processor
Chipset Intel® SoC
Memory 1 DDR3L 1333 SO-DIMM, up to 8GB
Video 1 DVI-I for VGA/DVI/HDMI Video Output
Audio 1 Line-out
Software Support Windows 8, Windows 7, WES7, Linux
I/O Interface

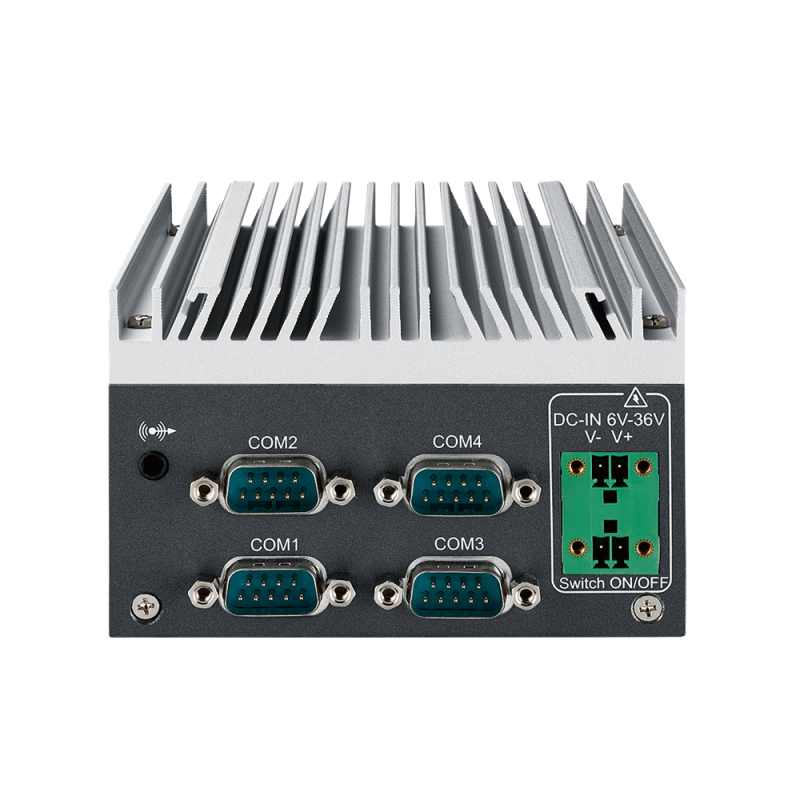

Serial 4 RS-232/422/485
Ethernet 2 Gigabit LAN by Intel® I210
PoE 2 Gigabit IEEE 802.3at (25.5W/48V) PoE+ Ports (Optional)
USB 4 USB 3.0
DIO 4 Isolated DI, 4 Isolated DO (Optional)
LED Power/HDD/WTD/PoE
Mini PCIe Slot 1 Mini PCIe Socket (PCIe + USB+ SIM card socket)
1 Mini PCIe Socket (PCIe + USB) optional with mSATA
(Jumper Select)
Power Supply
Power Input Terminal Block, DC-IN 6V to 36V
2-pin Remote Power On/Off Switch
Power Button
Adaptor AC to DC, 60W (Optional)
Storage
SATA HDD 1 SATA II Ports at 3.0 Gbps
1 External SIM socket
mSATA 1 Mini PCIe Socket (PCIe + USB), optional with mSATA
Other
Watchdog Timer Reset: 1 to 255 sec./min. per step
Mechanical
Dimension 106 x 150.4 x 65.9mm (4.2” x 5.9” x 2.6”)
Weight 1.4 kg (3.1lb)
Mounting Wallmount by mounting bracket
DIN-Rail Mounting Kit (Optional)
Design Ultra-compact, 3.5″ Form Factor
Top cover Heat Sink, Fanless Design
Environment
Operating Temp. -25°C to 70°C (-13°F to 157°F)
Storage Temp. -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, Non-condensing
Shock IEC 60068-2-27
SSD: 50G @ Wallmount, Half sine, 11ms
Vibration Protection IEC 60068-2-64
SSD: 5 Grms @ 5Hz to 500Hz, 3 Axis
EMC CE/FCC/EN 50155 & EN 50121-3-2
Ordering Informations
Part Numbe Description
SPC-2845 SPC-2845, 2 PoE GbE+ LAN, 1 DVI-I, 4 RS-232/422/485, 8 Isolated DIO, 4 USB3.0, Intel® Atom™ Bay Trail E3845 Quad Core
SPC-2145 SPC-2145, 2 GbE LAN, 1 DVI-I, 4 RS-232/422/485, 4 USB3.0, Intel® Atom™ Bay Trail E3845 Quad Core
SPC-2845X SPC-2845, External SIM slot, 2 PoE+ GbE LAN, 1 DVI-I, 4 RS-232/422/485, 8 Isolated DIO, 4 USB3.0, Intel® Atom™ Bay Trail E3845 Quad Core
SPC-2145X SPC-2145, External SIM slot, 2 GbE LAN, 1 DVI-I, 4 RS-232/422/485, 4 USB3.0, Intel® Atom™ Bay Trail E3845 Quad Core
SPC-2845R SPC-2845, Front-Access CFast, 2 PoE+ GbE LAN, 1 DVI-I, 4 RS-232/422/485, 8 Isolated DIO, 4 USB3.0, Intel® Atom™ Bay Trail E3845 Quad Core
SPC-2145R SPC-2145, Front-Access CFast, 2 GbE LAN, 1 DVI-I, 4 RS-232/422/485, 4 USB3.0, Intel® Atom™ Bay Trail E3845 Quad Core
SPC-2845RS SPC-2845, Front-Access SSD/HDD Tray, 2 PoE+ GbE LAN, 1 DVI-I, 4 RS-232/422/485, 8 Isolated DIO, 4 USB3.0, Intel® Atom™ Bay Trail E3845 Quad Core
SPC-2145RS SPC-2145, Front-Access SSD/HDD Tray, 2 GbE LAN, 1 DVI-I, 4 RS-232/422/485, 4 USB3.0, Intel® Atom™ Bay Trail E3845 Quad Core

Contattaci per maggiori informazioni su Ultra-Compact Systems SPC-2845X
