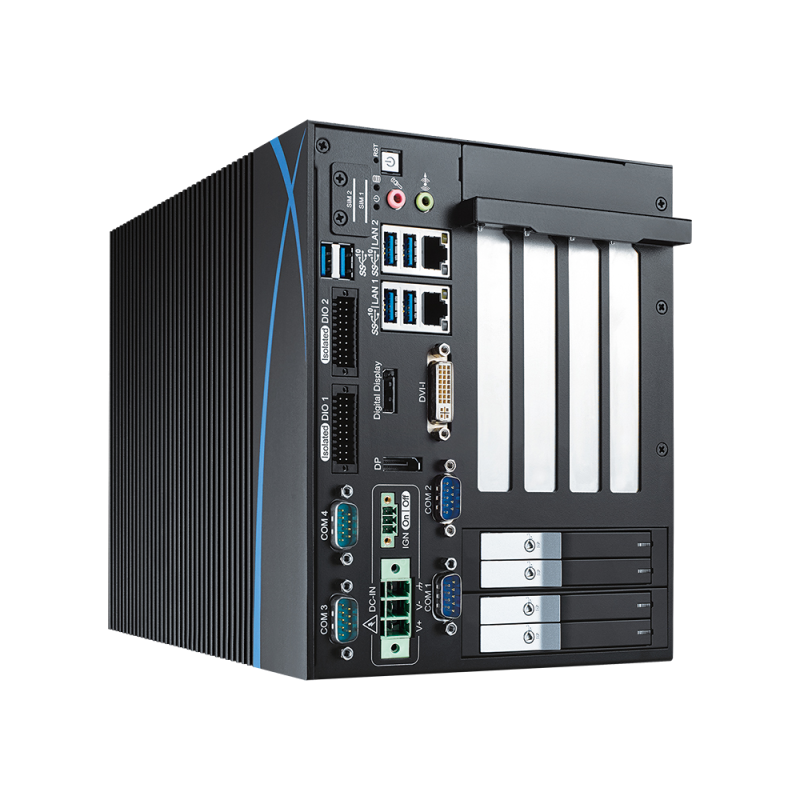

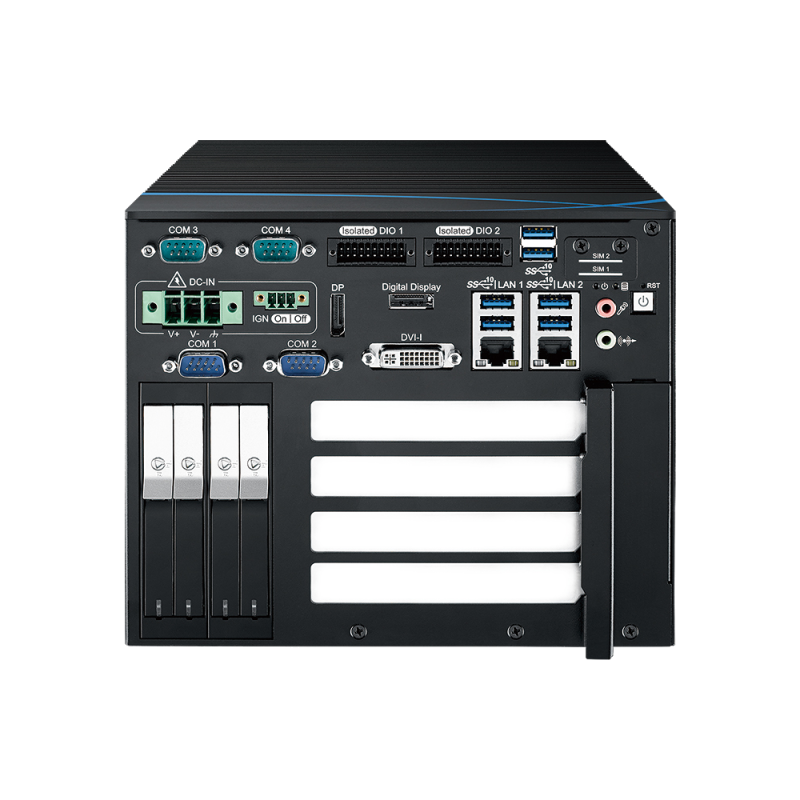

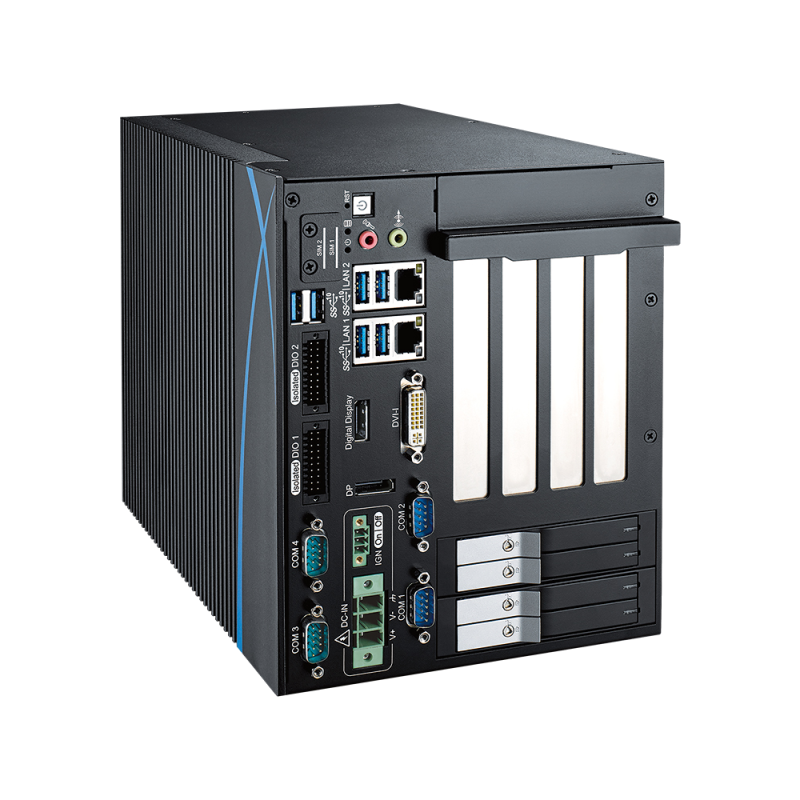

RCX-1422R
Tags: 6 Core Coffee Lake EN50155 HotSwapHDD Ignition Isolated I/O M.2 SIM USB3.1 Wide Range DC Input
Caratteristiche generali
– 6 Cores 8th Generation Intel® Xeon®/Core™ i7/i5/i3 (Coffee
Lake-S) with workstation-grade Intel® C246 Chipset
– 4 DDR4 2666MHz Memory, up to 128GB (ECC/Non-ECC)
– 6 ports external USB 3.1 Gen 2 support up to 10Gbps data transfer
– Rugged & Fanless design, -40°C to 75°C Operating Temperature
– 2 External SIM Socket for WiFi/4G/3G/LTE/GPRS/UMTS
– 4 Front-access 2.5″ SSD Tray, RAID 0, 1, 5, 10 supported
– 1 PCIe x16, 1 PCIe x4, 2 PCI
– Supports max 300W Power Budget for independent graphics operation
– 32 Isolated DIO, 6 USB 3.1, 4 COM RS-232/422/485
– 2 M.2 Socket : 1 M.2 Key M, 1 M.2 Key E
– 6V to 36V DC Power Input with 80V Surge Protection
– Configurable Ignition Power Control
Caratteristiche Tecniche
SYSTEM | |
Processor | 6 Cores Intel® Xeon®/Core™ i7/i5/i3 Processor (Coffee Lake-S) |
Chipset | Intel® C246 |
BIOS | AMI |
SIO | IT8786E |
Memory | 4 DDR4 2666MHz SO-DIMM, up to 128GB (ECC/Non-ECC) |
I/O INTERFACE | |
Serial | 4 COM RS-232/422/485 (ESD 8KV) |
USB | 6 USB 3.1 Gen 2 (External) |
1 USB 2.0 (Internal) | |
Isolated DIO | 32 Isolated DIO : 16 DI, 16 DO |
LED | Power, HDD, Wireless |
SIM Card | 2 External SIM Card Socket |
EXPANSION | |
Mini PCIe | 2 Full-size for PCIe/USB/External SIM Card/mSATA |
M.2 | 1 M.2 Key E Socket |
PCIe | 1 PCIe x16, 1 PCIe x4 |
PCI | 2 PCI |
GRAPHICS | |
Graphics Processor | Intel® UHD Graphics P630/630 |
Interface | 1 DVI-I : Up to 1920 x 1200 @ 60Hz |
2 DisplayPort : Up to 4096 x 2304 @ 60Hz | |
STORAGE | |
SATA | 4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10 |
mSATA | 2 SATA III (Mini PCIe Type, 6Gbps) |
Storage Device | 4 Front-access 2.5″ SSD/HDD Tray |
1 M.2 Key M Socket (Internal) | |
AUDIO | |
Audio Codec | Realtek ALC892, 5.1 Channel HD Audio |
Audio Interface | 1 Mic-in, 1 Line-out |
ETHERNET | |
LAN 1 | Intel® I219LM GigE LAN supports iAMT 12.0 |
LAN 2 | Intel® I210 GigE LAN |
POWER | |
Power Input | 6V to 36V, DC-in |
Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground |
Ignition Control | 16 Mode (Internal) |
Remote Switch | 3-pin Terminal Block |
Surge Protection | Up to 80V/1ms Transient Power |
OTHERS | |
TPM | Optional Infineon SLB9665 supports TPM 2.0, LPC Interface |
Watchdog Timer | Reset : 1 to 255 sec./min. per step |
Smart Management | Wake on LAN, PXE supported |
HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
SOFTWARE SUPPORT | |
OS | Windows 10, Linux |
MECHANICAL | |
Dimensions | 250.4mm x 210.0mm x 172.0mm (9.86″ x 8.27″ x 6.77″) |
Weight | 5.0 kg (11.0 lb) |
Mounting | Wallmount by mounting bracket |
ENVIRONMENT | |
Operating Temperature | 35W TDP CPU : -40°C to 75°C (-40°F to 158°F) |
65W TDP CPU : -40°C to 55°C (-4°F to 131°F) | |
80W TDP CPU : -40°C to 45°C (-4°F to 113°F) | |
Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
Humidity | 5% to 95% Humidity, non-condensing |
Relative Humidity | 95% @ 75°C |
Shock | IEC 60068-2-27 |
SSD : 50G @ wallmount, Half-sine, 11ms | |
Vibration | IEC 60068-2-64 |
SSD : 5Grms, 5Hz to 500Hz, 3 Axis | |
EMC | CE, FCC, EN50155, EN50121-3-2 |
