Caratteristiche Tecniche
| CPU | Intel® Core i9/i7/i5/i3/Celeron® Bartlett/Raptor Lake Processor (Supports up to 65W) |
|---|---|
| Chipset | Intel® Q670E |
| RAM | 2 DDR5 5600MHz SODIMM up to 64GB |

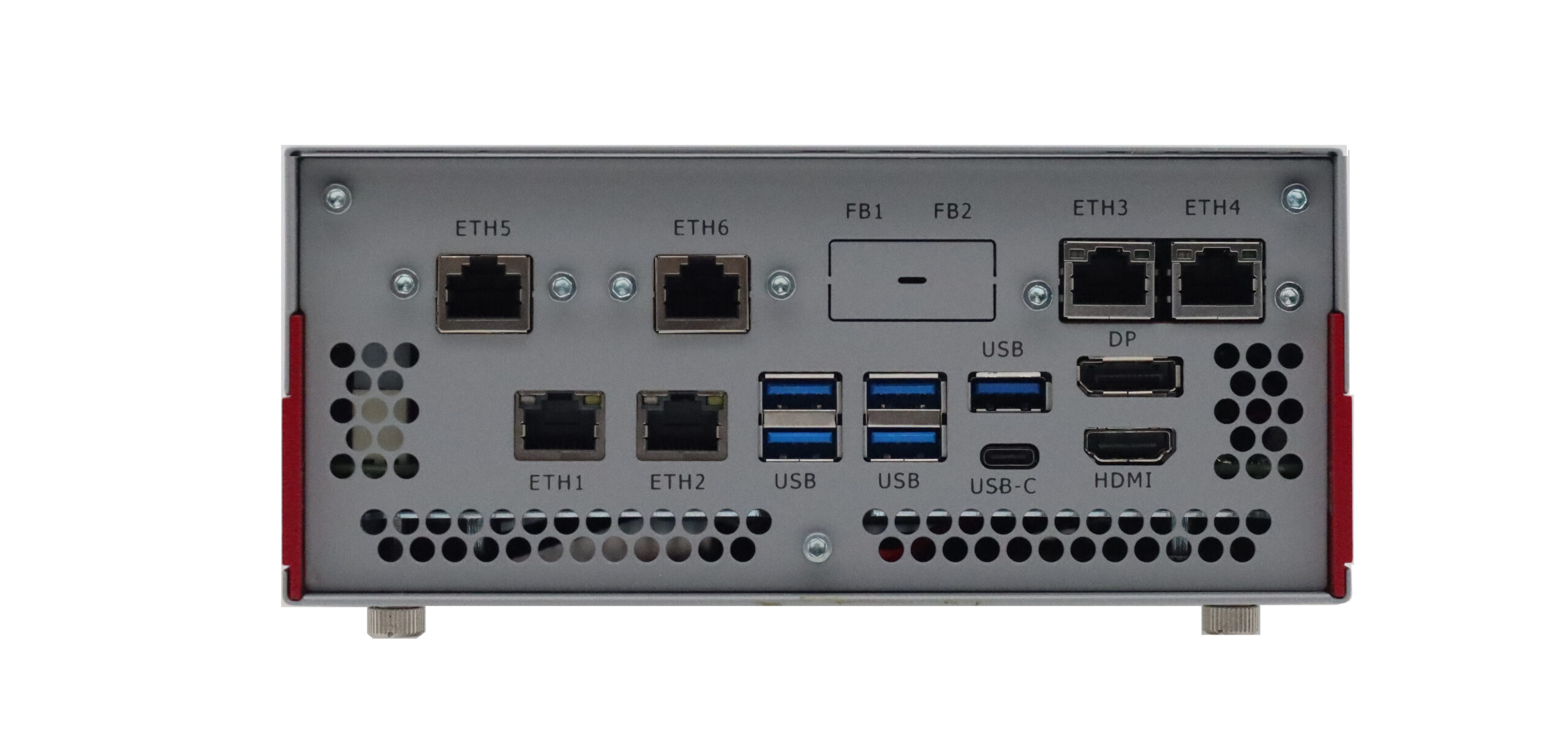

| LAN | 1 x 2.5GbE Intel® I226-LM (Core i9/i7/i5 support iAMT); 1 x 2.5GbE Intel® I226-V; 4 x 2.5GbE Intel® i226 or Intel® 1GbE i210 options available |
| I/O | 2 x input optoisolated, 2 x output optoisolated |
| Storage | 1x M.2 (Key M, 2280) with PCIe x4 and SATA3; 1 x M.2 2242/3042/3052 B Key (PCIe 3.0 x1/SATA 3.0×1/USB 3.2 Gen2x1/USB 2.0×1); 2x 2,5” SATA 6Gb/s, w/ RAID 0/1/10 (optional) |

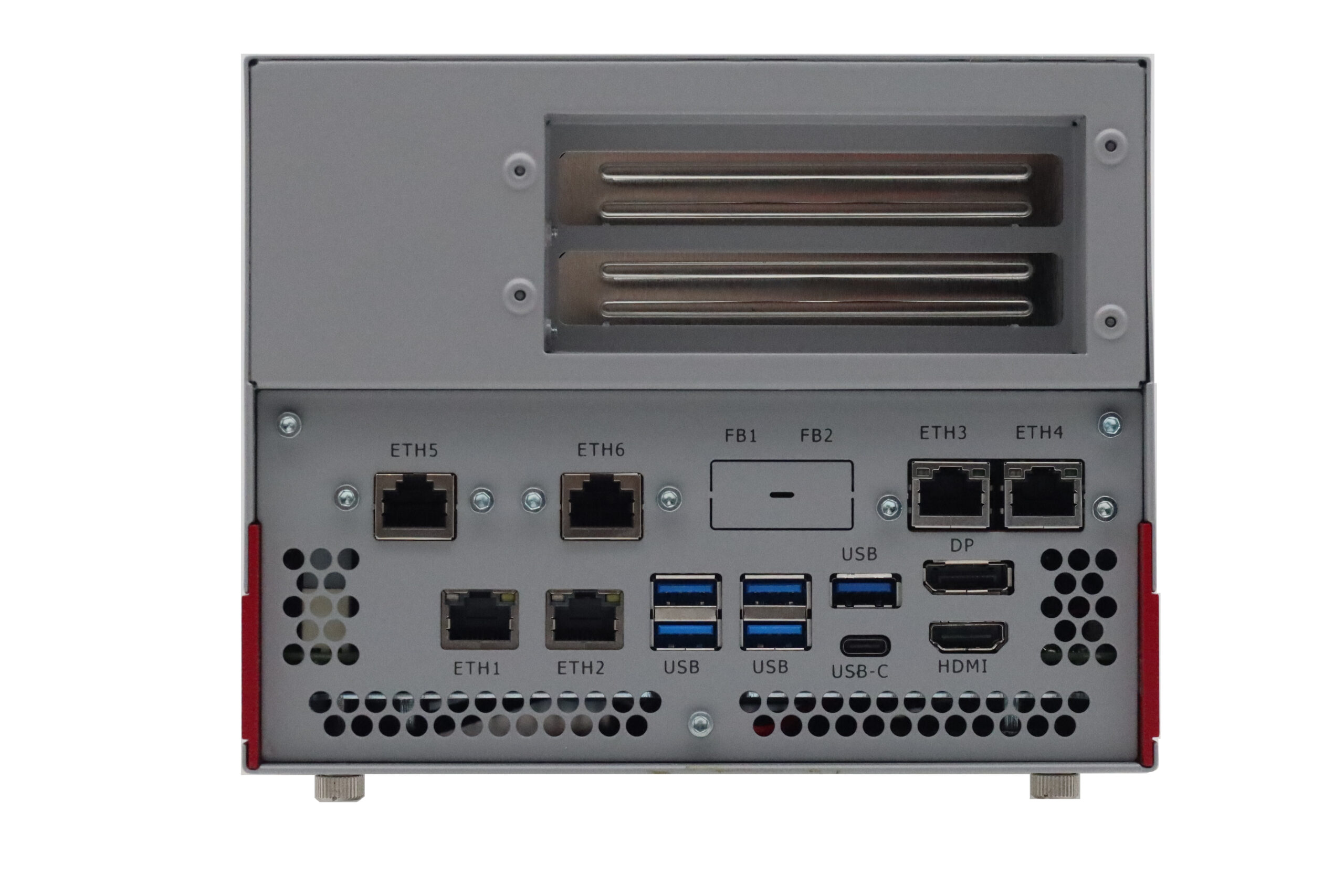

| Expansion | 2 slots for peripherals – 2x PCIex16 (8x signals) |
| Operative range | 0°C ÷ +50°C |

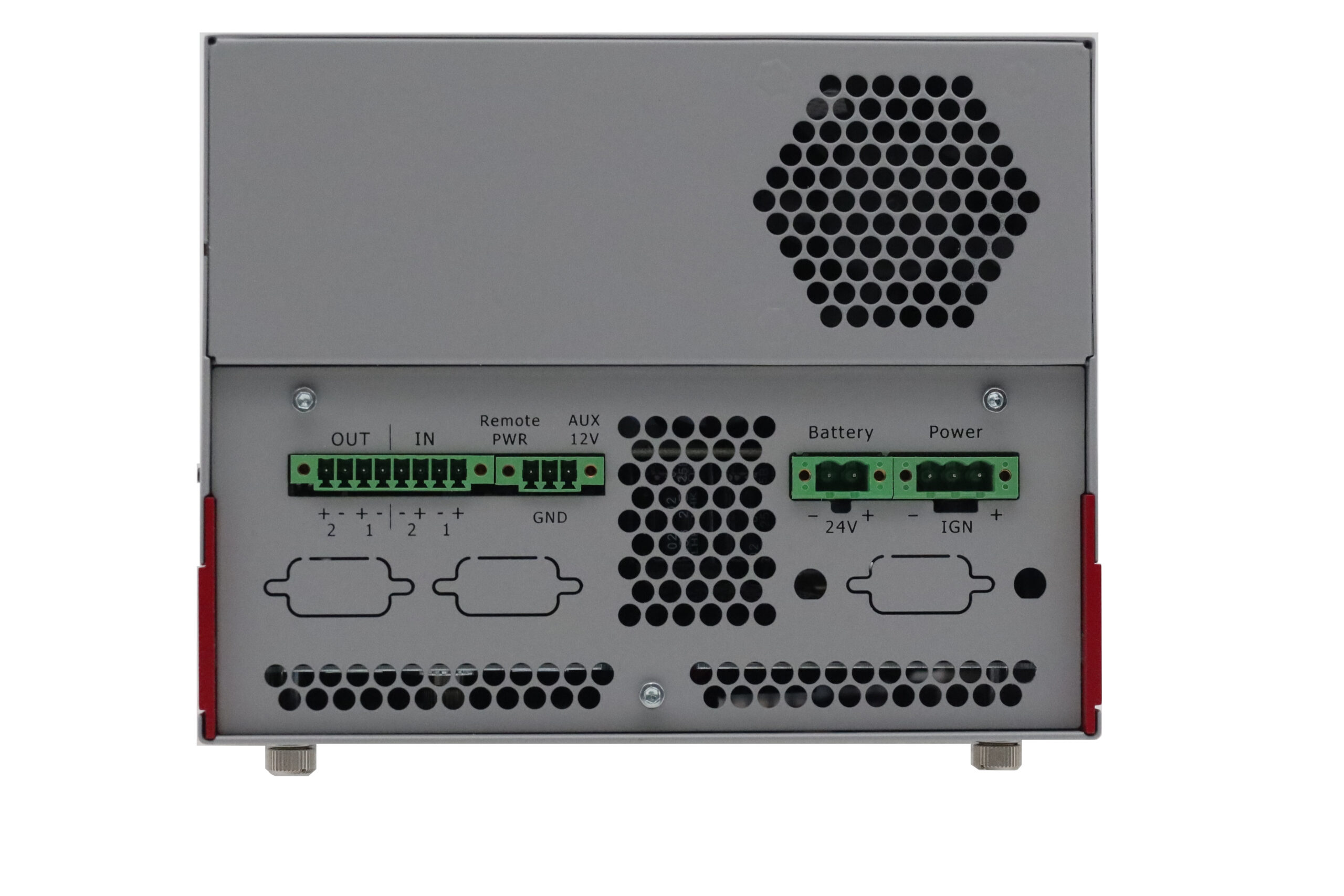

| Power | wide input voltage range DC 22-28V |
| Notes | UPS functions, ignition signal controlled by onboard microcontroller; Remote power button; T-Power software utility to control power module functions; Integrated UPS function with external battery |
