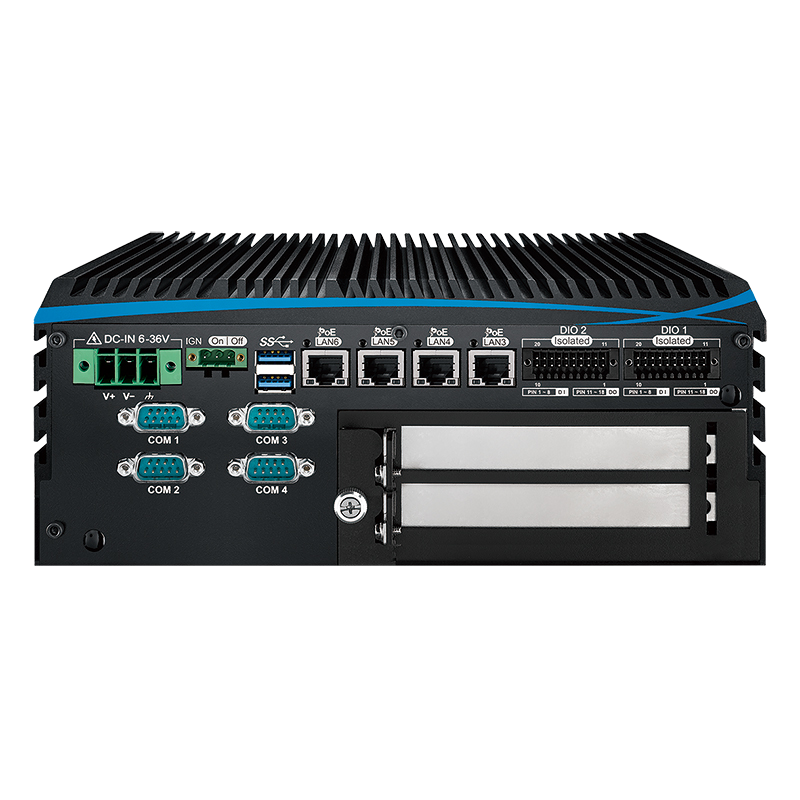

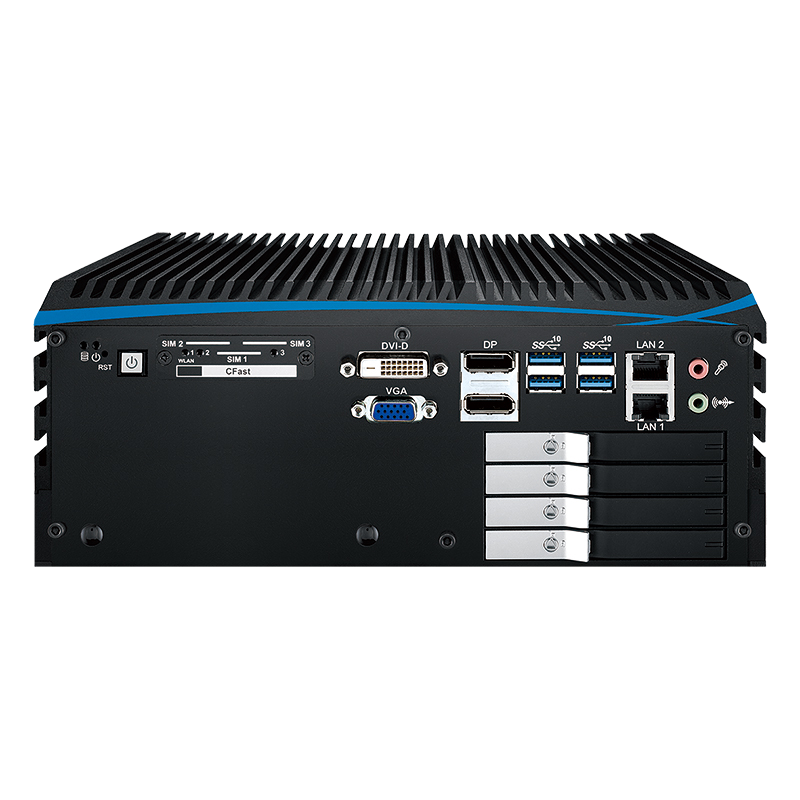

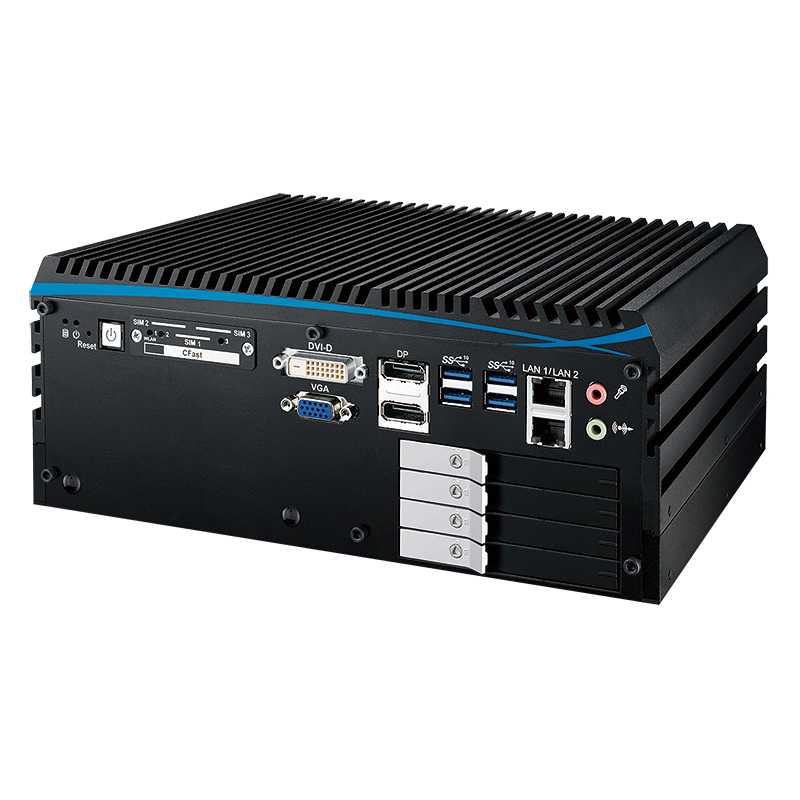

Caratteristiche generali
  • 8 Cores 9th Generation Intel®Xeon®/Core™ i7/i5/i3 (Coffee LakeRefresh) with workstation-grade Intel®246 Chipset
  • Fanless, -40°C to 75°C Operating Temperature
  • 6 Independent GigE LAN with 4 IEEE 802.3at PoE+
  • 32 Isolated DIO, 6 USB 3.1, 4 COM RS-232/422/485
  • Storage : 4 2.5″ SSD Tray, 1 CFast, 1 M.2, 4 SATA III
  • Expansion : 1 PCIe x16, 1 PCIe x4, 2 Mini PCIe/mSATA, 1 M.2
  • PCIe x16 expansion supports up to 200W Power Budget
  • Display : VGA, DVI-D & 2 DisplayPort interfaces, up to 4K resolution
  • 3 External SIM Socket for WiFi/4G/3G/LTE/GPRS/UMTS
  • 6V to 36V DC Power Input with 80V Surge Protection
  • Configurable Ignition Power Control
Caratteristiche Tecniche
Processor Intel®Xeon®/Core™ i7/i5/i3 Processor (CFL-R S/CFL-S)
Chipset Intel® C246 chipset
Memory 2 DDR4 2666MHz SO-DIMM, up to 32GB
Serial 4 COM RS-232/422/485 (ESD 8KV)
USB 6 USB 3.1 (External)
1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO: 16 DI, 16 DO
LED Power
SIM Card 3 external SIM sockets
Mini PCIe 2 full-size Mini PCIe sockets for PCIe/USB/external SIM/mSATA
PCIe 1 PCIe x16 slot
1 PCIe x4 slot
M.2 1 M.2 Key E socket
SUMIT A, B 2 SUMIT slots (Optional)
Graphics processor Intel® UHD graphics P630/630
Interface VGA : Up to 1920 x 1200 @ 60Hz
DVI-D : Up to 1920 x 1080 @ 60Hz
2 DisplayPort : Up to 4096 x 2304 @ 60Hz
SATA 4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe type, 6Gbps)
M.2 1 M.2 Key B socket
Storage device 1 CFast socket, Push-in/Push-out ejector
4 front-access 2.5″ SSD/HDD trays
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in
1 Line-out
LAN 1 Intel® I219LM GigE LAN supports iAMT 11.0
LAN 2 Intel® I210 GigE LAN
LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 5 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 6 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
Power Input 6V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block
Surge Protection Up to 80V/1ms Transient Power
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC interface
Watchdog timer Reset : 1 to 255 sec./min. per step
Smart management Wake on LAN, PXE supported
HW monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
OS Windows 10
Dimension (W x L x H) 260mm x 215mm x 104.1mm (10.24″ x 8.46″ x 4.10″)
Weight 5.5 kg (12.13 lb)
Mounting Wallmount by mounting bracket
DIN Rail mount (Optional)
Operating temperature 35W TDP CPU: -40°C to 75°C (-40°F to 167°F)
65W TDP CPU: -40°C to 55°C (-40°F to 131°F)
80W TDP CPU: -40°C to 45°C (-40°F to 113°F)
Storage temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative humidity 95% at 70°C
Shock IEC 60068-2-27
SSD : 50G @ wallmount, Half-sine, 11ms
Vibration IEC 60068-2-64
SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2

Contattaci per maggiori informazioni su Expandable Systems ECX-1420
