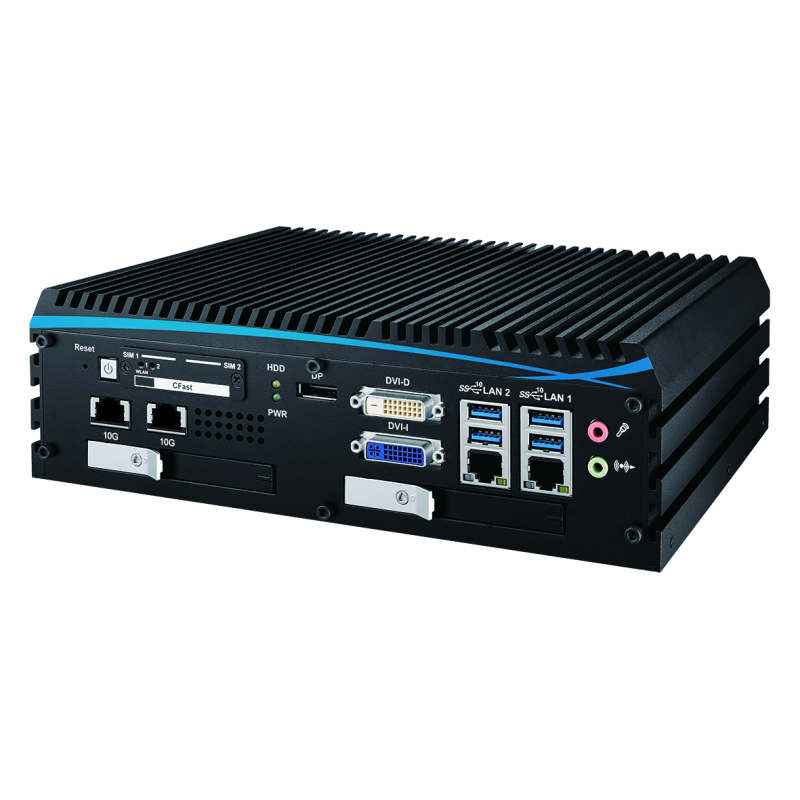

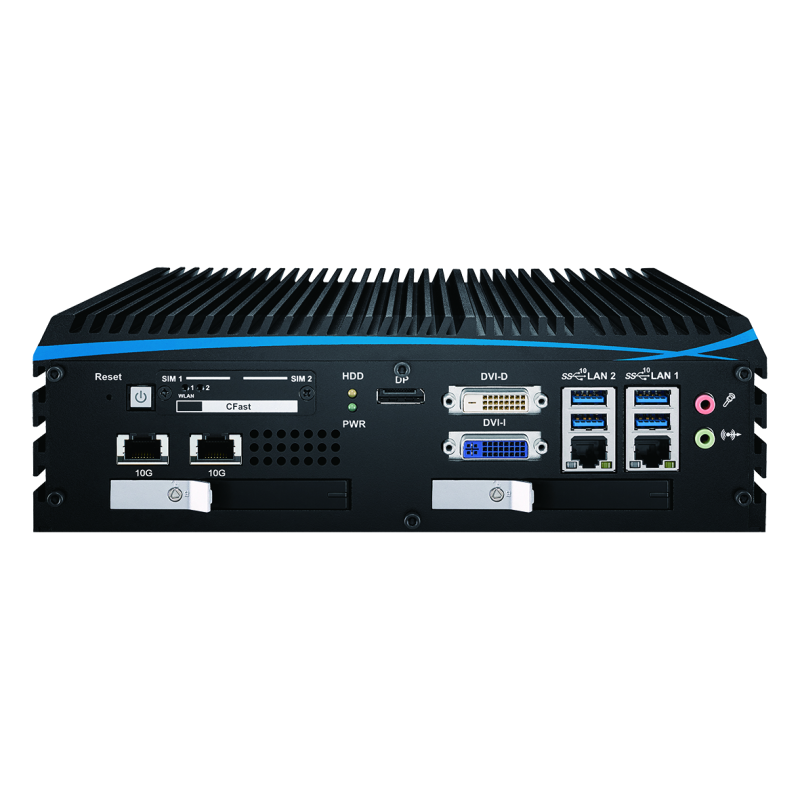

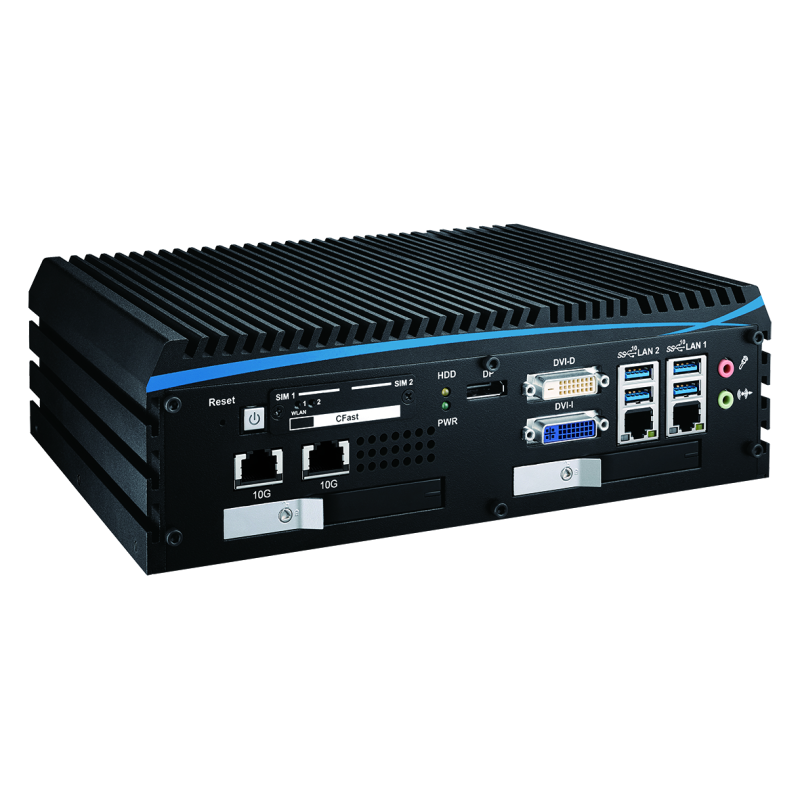

ECX-1055R

Box PC Fanless

8th Generation Intel® Xeon®/Core™ i7/i5/i3 (Coffee Lake) 10GigE Embedded System with Intel® C246 Chipset, 2-port 10GigE LAN, 6 GigE LAN
with 4 PoE+, 6 USB 3.1, 2 Front-access SSD Tray, 2 M.2 Socket, Isolated DIO, High Performance, EN50155, EN50121



Caratteristiche generali

-6 Cores 8th Generation Intel® Xeon®/Core™ i7/i5/i3 (Coffee Lake-S)
with Intel® C246 Chipset
-Dual 10GigE RJ45 LAN support up to 10Gbps data rate
-USB 3.1 supports up to 10G data transfer
-6 Independent GigE LAN with 4 IEEE 802.3at PoE+
-SIM Sockets for WiFi/4G/3G/LTE/GPRS/UMTS
-2 2.5 SSD Tray, 2 SIM Socket, 1 CFast Socket, 2 M.2 Socket
-6 USB 3.1, 4 COM RS-232/422/485, 16 Isolated DIO
-6V to 36V DC Power Input with 80V Surge Protection
-Configurable Ignition Power Control

Caratteristiche Tecniche
SYSTEM
Processor Intel® Xeon® Core™ i7/i5/i3 Processor (Coffee Lake-S)
Chipset Intel® C246
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2666MHz SO-DIMM, up to 32GB (ECC/Non-ECC)
I/O INTERFACE
Serial 4 COM RS-232/422/485 (ESD 8KV)
USB 6 USB 3.1 (6 External)
1 USB 2.0 (Internal)
Isolated DIO 16 GPIO
LED Power, HDD, Wireless
SIM Card 2 External SIM Card Socket
EXPANSION
Mini PCIe 2 Full-size Mini PCIe Socket for PCIe/USB/External SIM Card/
mSATA
M.2 1 M.2 Key E Socket
SUMIT A, B 2 SUMIT Slot (Optional)
GRAPHICS
Graphics Processor Intel® UHD Graphics P630/630
Interface DVI-I : Up to 1920 x 1200 @ 60Hz
DVI-D : Up to 1920 x 1080 @ 60Hz
DisplayPort : Up to 4096 x 2304 @ 60Hz
STORAGE
SATA 2 SATA III (6Gbps) support S/W RAID 0, 1
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device 1 CFast Socket, Push-in/Push-out Ejector
2 Front-access 2.5″ SSD/HDD Tray
1 M.2 Key M Socket
AUDIO
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
ETHERNET
LAN 1 Intel® I219LM GigE LAN supports iAMT 12.0
LAN 2 Intel® I210 GigE LAN
PoE
LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 5 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 6 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
10G ETHERNET
LAN 7 Intel® X550-AT2 10GigE LAN
LAN 8 Intel® X550-AT2 10GigE LAN
POWER
Power Input 6V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, Off, IGN
Surge Protection Up to 80V/1ms Transient Power
OTHERS
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
SOFTWARE SUPPORT
OS Windows 10, Linux
MECHANICAL
Dimensions (W x L x H) 260mm x 175mm x 79mm (10.2″ x 6.9″ x 3.1″)
Weight 3.8 kg (8.38 lb)
Mounting Wallmount by mounting bracket
DIN Rail Mount (Optional)
2U Rackmount (Optional)
ENVIRONMENT
Operating Temperature 35W TDP CPU : -40°C to 75°C (-40°F to 167°F)
65W TDP CPU : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU : -40°C to 45°C (-40°F to 113°F)
STORAGE
Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @ 75°C
Shock IEC 60068-2-27
SSD : 50G @ wallmount, Half-sine, 11ms
Vibration IEC 60068-2-64
SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2
