Caratteristiche Tecniche
| CPU | Intel® Industrial RE Series Intel® Processor X7433RE 4 Cores, 1.5GHz to 3.4GHz Intel® Processor X7213RE 2 Cores, 2.0GHz to 3.4GHz Intel® Processor X7211RE 2 Cores, 1.0GHz to 3.2 GHz Intel® Processor X7835RE 8 Cores, 1.3GHz to 3.6GHz *TCC default disable in BIOS setting |
|---|---|
| Chipset | – |
| RAM | 8GB/16GB LPDDR5 4800 Memory down |
| LAN | 2 x Intel i226 2.5GbE (support TSN); 1 x Intel Ethernet i210 GbE (support DFI OOB function) |

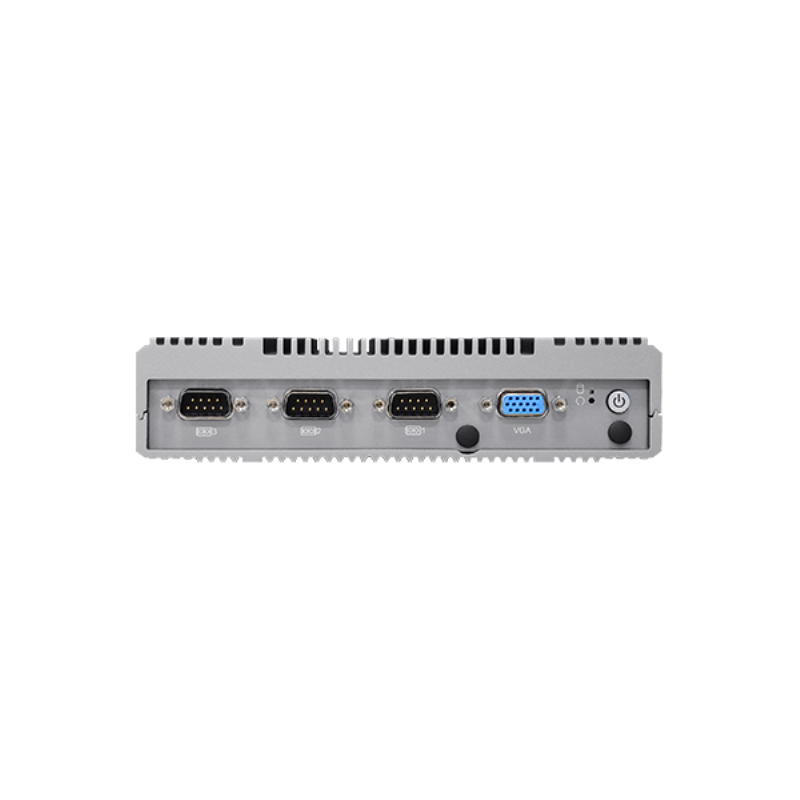

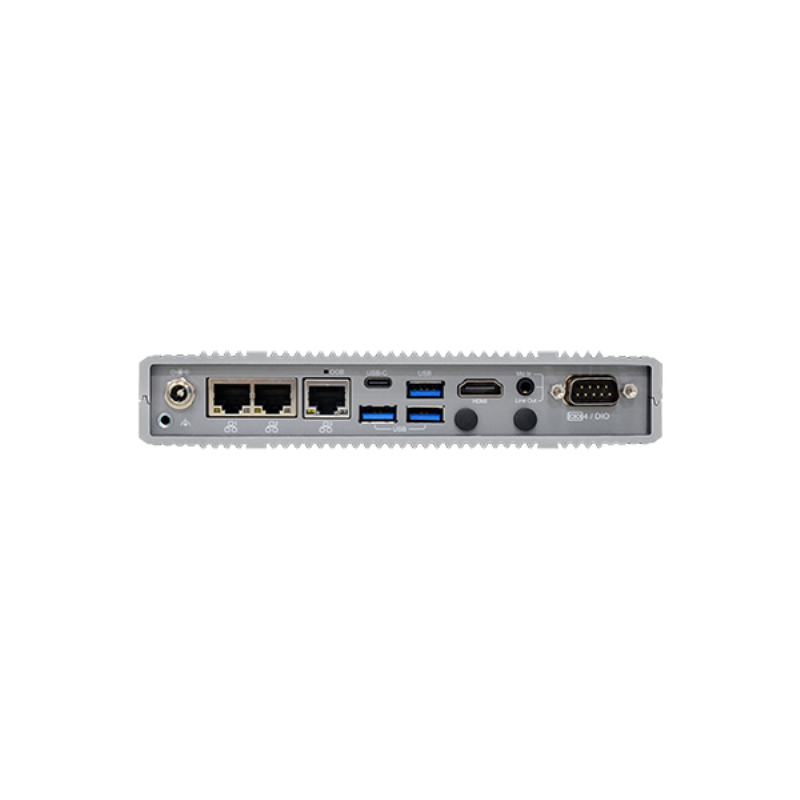

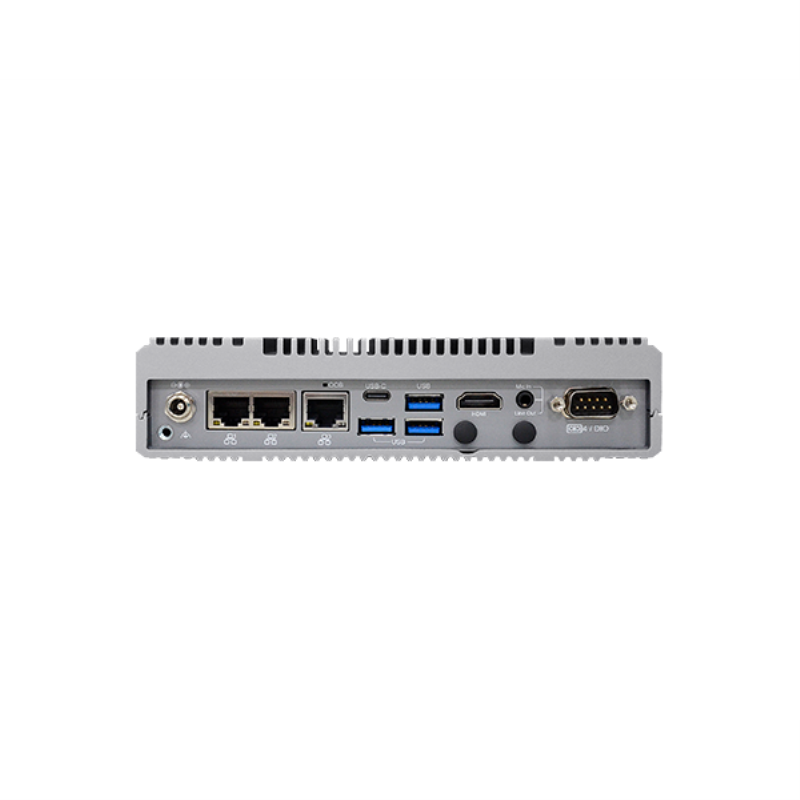

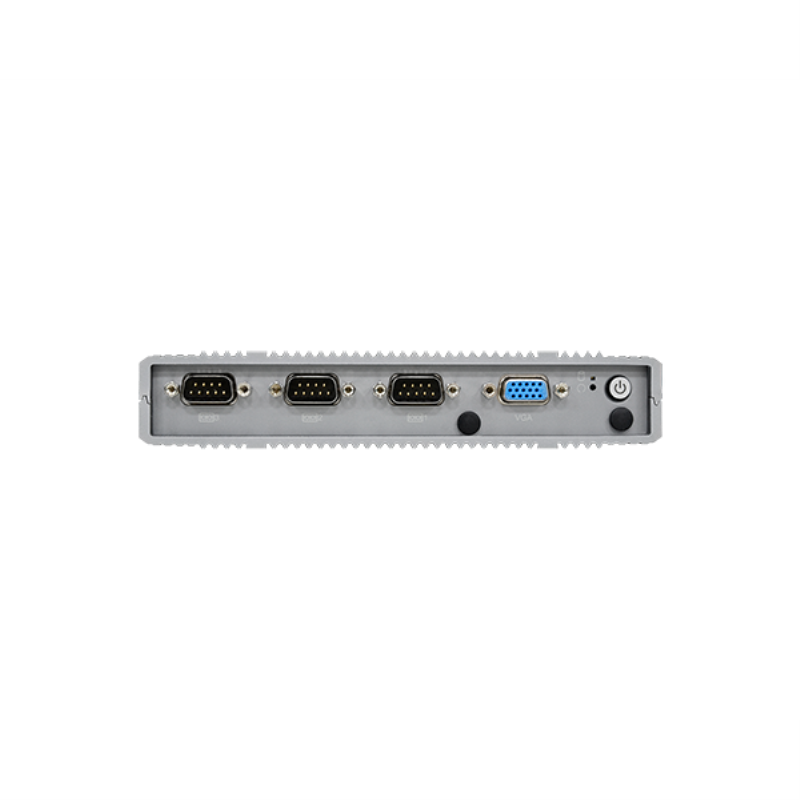

| I/O | 2 x COM RS232/422/485 (COM1 e COM2); 1 x COM RS232 (COM3); 1 x COM RS232/DIO (COM4); 3 x USB 3.2 type A; 1 x USB 3.2 type C; 1 x VGA; 1 x HDMI 1.4; 1 x USB-C (DP1.2 Alt. Mode); 2 x antenna holes |
| Storage | 1 x M.2 2280 M key (PCIe Gen3/SATA) – A heatsink & a thermal pad are required; 1 x eMMC module insert available |
| Expansion | 1 x M.2 2230 E key (USB 2.0/PCIe, support CNVi); 1 x M.2 3042/3052 B key: USB3.0/USB2.0/PCIe with SIM; 1 x M.2 2242/2280 M key (*PCIe/SATA) |
| Operative range | -40°C ÷ 60°C |
| Power | Wide range 9V ÷ 36V |
| Notes | Certifications; CE, FCC, RoHS, UKCA |
